The mining industry is one of the most demanding sectors, requiring specialized equipment to handle heavy loads, rough terrain, and extreme conditions. Among the essential pieces of machinery in mining are cranes, which are crucial for lifting and transporting heavy materials. When it comes to choosing the right crane for mining operations, two types of cranes are often considered: single girder cranes and double girder cranes. Both have unique advantages and disadvantages depending on the specific requirements of the job, and choosing the right one can make a significant impact on efficiency and safety in mining operations.

In this passage, we will compare single girder vs double girder cranes in the mining industry, focusing on their design, cost, load capacity, operational efficiency, and applications.

Design Differences

The most significant difference between single girder and double girder cranes lies in their structural design by the manufacturer like Aicrane.

Single Girder Cranes have only one bridge beam that supports the trolley and hoist. The hoist is typically mounted below the girder, which makes the overall design more compact. The single girder design is relatively simpler and lighter compared to double girder cranes, which makes it suitable for lighter loads and less demanding conditions.

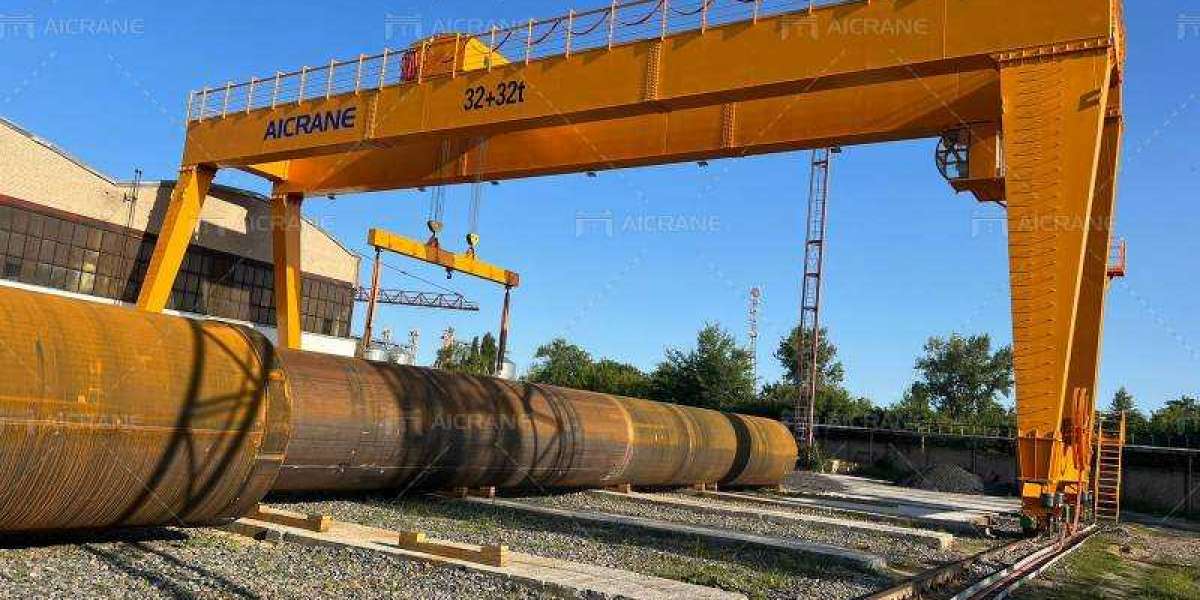

Double Girder Cranes, on the other hand, feature two parallel girders that span the width of the crane. The trolley and hoist are mounted between or on top of the girders. This design provides greater structural strength and stability, making it ideal for heavy-duty tasks in more challenging environments, like those found in the mining industry. The double girder setup also allows for a higher lifting height, which is a crucial factor in mining operations where vertical space is often a concern.

2. Load Capacity

In mining, the ability to lift heavy loads is a key requirement, and this is where the comparison between single girder and double girder cranes becomes critical.

Single Girder Cranes typically have a lower load capacity, usually ranging from 1 ton to 20 tons. While this might be sufficient for smaller mining operations or specific tasks like maintenance, it is not ideal for heavy-duty lifting in large-scale mining environments where materials like ore, coal, or heavy machinery need to be moved.

Double Girder Cranes are designed to handle much heavier loads, often ranging from 20 tons to over 100 tons. This makes them more suitable for mining operations that require the lifting and transportation of massive materials or equipment. Double girder cranes are often the go-to choice for mines that need to lift large amounts of ore, minerals, or heavy-duty machinery, as they provide the necessary strength and stability to perform these tasks safely and efficiently.

3. Cost Considerations

Cost is always an important factor when selecting equipment for any industrial operation, including mining.

Single Girder Cranes are generally less expensive to purchase and install than double girder cranes. Their simpler design, lighter weight, and lower material costs contribute to their affordability. For mining companies operating on a budget or those with less intensive lifting needs, a single girder crane may be an attractive option. However, it’s important to consider the trade-off between initial cost savings and long-term operational needs.

Double Girder Cranes are more expensive upfront due to their more complex design and the increased amount of material used in construction. The higher load capacity and additional features, such as increased lifting height, also add to the cost. However, for large-scale mining operations, the investment in a double girder crane can be justified by its ability to handle heavier loads and more demanding tasks, ultimately improving efficiency and productivity.

4. Operational Efficiency

Efficiency is critical in mining operations, where downtime can result in significant financial losses. The choice between a single girder and double girder crane can have a direct impact on the efficiency of material handling processes.

Single Girder Cranes are typically faster to install and easier to maintain due to their simpler design. They are also more energy-efficient for smaller loads, which can result in cost savings over time, especially in operations where lighter lifting is the norm. However, their limitations in load capacity and lifting height can be a disadvantage in more demanding mining environments.

Double Girder Cranes, with their ability to handle heavier loads and offer greater lifting height, provide superior operational efficiency in large mining operations. They can move more material in less time, reducing the overall time needed for transporting heavy loads across the mining site. The added stability and strength of the double girder design also mean that these cranes can operate in harsher conditions, such as those found in underground mining or open-pit mining, without compromising safety or performance.

5. Applications in Mining

The specific application of a crane in mining operations can also influence whether a single girder or double girder crane is the better choice.

Single Girder Cranes are well-suited for smaller, more specialized tasks in mining, such as equipment maintenance, transporting lighter materials, or working in confined spaces where a larger crane would be impractical. They are often used in workshops, storage areas, or smaller mining operations where the demands on lifting capacity are not as intense.

Double Girder Cranes are typically used in larger, more demanding mining environments, such as open-pit mines, underground mines, or large material handling operations. Their ability to lift and transport heavy materials makes them essential for tasks like loading and unloading ore, moving large machinery, or transporting mined materials to processing areas. Additionally, double girder cranes are often used in more challenging environments where the terrain or the working conditions require a more robust and powerful lifting solution.

In conclusion, both single girder and double girder cranes have their place in the mining industry, but the choice between them largely depends on the specific needs of the operation. Single girder cranes are a cost-effective solution for smaller operations or less demanding tasks, offering simplicity and ease of use. On the other hand, double girder cranes are the preferred choice for large-scale mining operations that require heavy-duty lifting, greater lifting height, and robust performance in tough environments.

Mining companies need to carefully assess their operational needs, budget, and long-term goals when choosing between single and double girder cranes. By doing so, they can ensure that they select the right crane to maximize efficiency, safety, and productivity in their mining operations.
