Understanding Single Girder Gantry Cranes

1.1 What is a Single Girder Gantry Crane?

A single girder gantry crane consists of a single horizontal beam (girder) supported by legs that move on wheels or along a track. The hoist and trolley are mounted on the girder, allowing for horizontal and vertical movement of loads. Unlike double girder gantry cranes, which have two horizontal beams, single girder gantry cranes are lighter and more cost-effective, making them suitable for medium-duty lifting tasks.

1.2 Key Specifications

Lifting Capacity: Single girder gantry cranes typically have a lifting capacity ranging from 1 to 20 tons, depending on the model and configuration.

Span and Height: The span (distance between the legs) and height (vertical clearance) can be customized to suit specific requirements. Common spans range from 5 to 30 meters, while the height can vary based on the application.

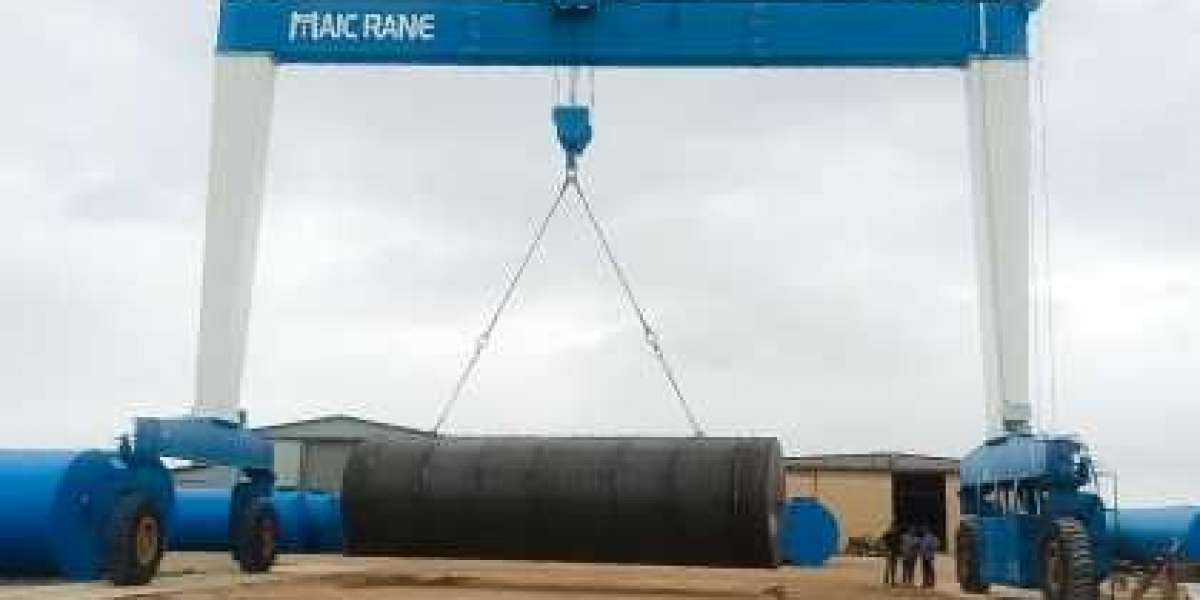

Mobility: Single girder gantry cranes can be either fixed or mobile. Mobile gantry cranes are equipped with wheels, allowing them to move freely within the precast yard.

Power Source: These cranes can be powered by electric motors, providing consistent and reliable performance.

Applications in Precast Yards

2.1 Material Handling and Storage

One of the primary applications of single girder gantry cranes in precast yards is the handling and storage of raw materials. These cranes are used to lift and move heavy materials such as cement bags, steel rods, and aggregates, ensuring that they are stored efficiently and safely. The crane's mobility allows it to transport materials from storage areas to production zones, streamlining the workflow.

2.2 Mold Preparation and Handling

In precast yards, molds are used to shape concrete into specific forms. Single girder gantry cranes are instrumental in handling these molds, which can be heavy and cumbersome. The crane's precise control enables operators to position molds accurately, ensuring that the final product meets the required specifications.

2.3 Concrete Pouring and Curing

During the concrete pouring process, single girder gantry cranes are used to transport and position concrete buckets over the molds. The crane's ability to move both horizontally and vertically allows for precise placement of concrete, reducing the risk of spills and ensuring even distribution. After pouring, the crane can also be used to move the molds to curing areas, facilitating the hardening process.

2.4 Finished Product Handling

Once the precast elements are cured and ready for transportation, single girder gantry cranes play a crucial role in handling the finished products. These cranes are used to lift and move precast components such as beams, columns, slabs, and panels, ensuring that they are stored securely or loaded onto transportation vehicles. The crane's lifting capacity and precision ensure that the products are handled safely, minimizing the risk of damage.

Advantages of Using Single Girder Gantry Cranes

3.1 Cost-Effectiveness

One of the significant advantages of single girder gantry cranes is their cost-effectiveness. These cranes are generally less expensive to purchase, install, and maintain compared to double girder gantry cranes. This makes them an attractive option for precast yards, where budget constraints are often a consideration.

3.2 Versatility and Flexibility

Single girder gantry cranes are highly versatile and can be used for various tasks within a precast yard. Their ability to handle different types of loads and move freely within the yard allows for efficient and flexible operations. Whether it's lifting raw materials, handling molds, or moving finished products, single girder gantry cranes can adapt to different requirements.

3.3 Ease of Installation and Maintenance

Single girder gantry cranes are relatively easy to install and maintain. Their simpler design means fewer components, reducing the time and cost associated with installation and maintenance. Regular inspections and timely maintenance can ensure the crane's longevity and reliable performance.

3.4 Enhanced Safety

Safety is a critical consideration in any construction environment. Single girder gantry cranes are equipped with advanced safety features such as overload protection, emergency stop buttons, and anti-collision systems. These features ensure that the crane operates safely, protecting both the operators and the materials being handled.

3.5 Increased Efficiency and Productivity

By streamlining material handling processes, single girder gantry cranes can significantly increase efficiency and productivity in precast yards. The crane's ability to lift and move heavy loads quickly and accurately reduces the time required for manual handling, allowing workers to focus on other essential tasks. This increased efficiency translates to faster production cycles and improved overall productivity. Get your gantry crane from reliable manufacturer like Aicrane.

Operational Best Practices

4.1 Site Assessment and Planning

Before deploying a single girder gantry crane, conduct a thorough site assessment to identify potential challenges and plan the crane's movements. Consider factors such as terrain, load paths, and access routes to ensure safe and efficient operations.

4.2 Operator Training

Ensure that all crane operators are properly trained and certified. Skilled operators can handle the crane more efficiently and safely, reducing the risk of accidents and improving productivity.

4.3 Regular Maintenance

Perform regular maintenance checks on the single girder gantry crane to ensure that all components are in good working condition. Routine inspections and timely repairs can prevent unexpected breakdowns and extend the crane's lifespan.

4.4 Safety Protocols

Implement strict safety protocols to protect workers and equipment. Establish clear zones around the crane's operating area, enforce load limits, and ensure that all personnel are aware of emergency procedures.

Single girder gantry cranes play a pivotal role in the efficient and safe operation of precast yards. Their versatility, cost-effectiveness, and lifting capacity make them ideal for handling raw materials, molds, concrete pouring, and finished products. By following best practices in site assessment, operator training, maintenance, and safety, precast yards can maximize the benefits of single girder gantry cranes, leading to increased efficiency, productivity, and overall success. The integration of these cranes into precast yard operations not only enhances workflow but also contributes to the quality and precision of the final precast products.
